Reinforcement Welded Mesh

Price: 3.0~7.5 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Hebei, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: WM-001
Packing: waterproof paper or plastic...
Application: Others
Material: Others
Means of Transport: Ocean
Delivery Date: within 25 days
Type: Welded
Brand Name: zhenyu

1.professional wire mesh manufacturer since 1998
2.material:ss wire,low-carbon iron wire
3.wire diameter:1.65-2.67mm

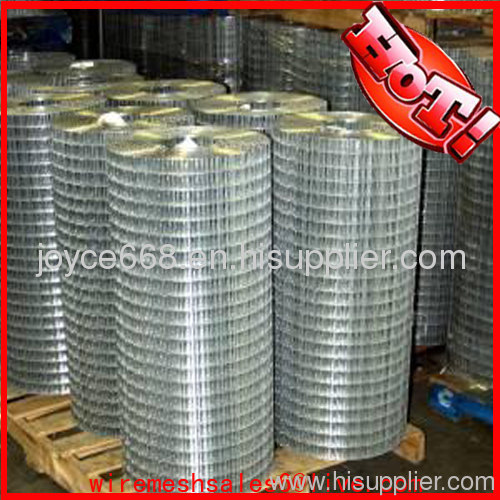

Welded wire mesh
We are professional manufacturer of concrete wire mesh,black concrete wire mesh,pvc coated welded wire mesh ,galvanized welded wire mesh,reinforcement wire mesh,welded wire mesh,reinforcing wire mesh,deformed bar wire mesh.We call all of this welded wire mesh .

Concrete wire mesh is made of selected quality iron wires through the process of automation and sophisticated welding technique. The end product is level and flat, sturdy structure, and even strength throughout, the netting shows no signs of wear and tear when cutting off a part or under a stress.

Zhenyu brand welded wire mesh is galvanised by hotdipping after welding, having good corrosive resistance and qualities which are not usually found in average wire mesh.

Electrical welded wire mesh is widely used in industry, farming, construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock, and decorations etc.
-----Electro galvanized welded wire mesh
-----Hot dipped welded wire mesh
-----PVC coated welded wire mesh
-----Welded wire mesh panels
-----Heavy type welded wire mesh
1.Material:super quality low-carbon iron wire,stainless steel wire,galvanized wire.
2.Wire diameter:1.65-2.67mm
3.Mesh size:2''*2''   3''*3''   4''*4''   2''*4''
4.Length: 10-30m
5.Width: 0.5-1.8m
6.Applicayion: welded wire mesh is widely used in industry and agriculture construction,   transportand mines for all such purposes as poultry houses, egg baskets,runway enclosures, draining rack, ruit drying screening, fences.
Welded Wire Mesh
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21,
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note:
1. Standard roll length: 30m;width: 0.5m to 1.8m.
2. Special sizes available at request.
3. Packing: in waterproof paper in rolls. Custom packing available at request
Galvanized welded wire mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
2" x 3"
50mm x 75mm
2.0mm,2.5mm,1.65mm
3" x 3"
75mm x 75mm
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"
50mm x 100mm
2.11mm,2.5mm
4" x 4"
100mm x 100mm
2.0mm,2.5mm
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh
Opening
Wire Diameter
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
